1. 차별화된 유럽풍의 디자인
3. 뛰어난 살균효과
|
2. 저유량에서 고유량까지 다양한 구성
4. 설치가 간단하고 유지관리가 용이함
|
|
| |
|
|
 |
UV-S |
 |
UV-S1 |
|

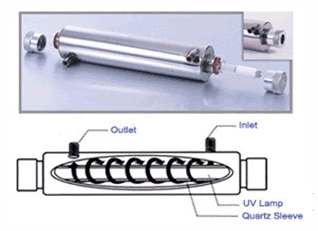

| 6 싸이클 UV 시스템 |
| DIMENSION L x W x D (mm) |
240X80X80 |
| ELECTRICAL VOLTS |
110/220V 50/60HZ |
| FLOW RATE |
1GPM |
| IN/OUT PORT |
1/4" |
| UV LAMP (PC) |
1 |
| QUARTZ SLEEVE (PC) |
6 |
| LAMP FAILURE DEVICE |
YES |
AMBIENT
TEMPERATURE |
2~40℃
(36~104℉) |
| LAMP WATTS |
10W |
| CHAMBER |
ALUMINUM |
|
|
| |

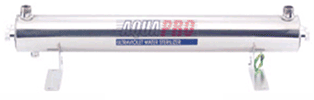

UV1GPM |
|
 |
|
| UV1GPM-H(수평형) |
| DIMENSION L x W x D (mm) |
278X80X80 |
| ELECTRICAL VOLTS |
110/220V
50/60HZ |
| FLOW RATE |
2GPM |
| IN/OUT PORT |
1/4" |
| UV LAMP (PC) |
1 |
| QUARTZ SLEEVE (PC) |
1 |
| LAMP FAILURE DEVICE |
YES |
AMBIENT
TEMPERATURE |
2~40℃
(36~104℉) |
| LAMP WATTS |
14W |
| CHAMBER |
SS304 |
|
|
| |
|
 |

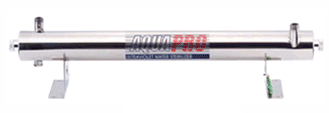

UV6GPM-H |
|
| UV6GPM-H(수평형) |
| DIMENSION LxWxD (mm) |
580X80X80 |
| ELECTRICAL VOLTS |
110/220V
50/60Hz |
| FLOW RATE |
6GPM |
| IN/OUT PORT |
1/2" |
| UV LAMP (PC) |
1 |
| QUARTZ SLEEVE (PC) |
1 |
| LAMP FAILURE DEVICE |
YES |
| AMBIENT TEMPERATURE |
2~40℃
(36~104℉) |
| LAMP WATTS |
20W |
| CHAMBER |
SS304 |
|
|
| |

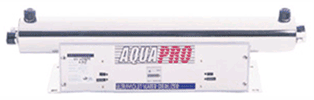

UV12GPM-H |
UV12GPM-HT |
UV12GPM-HTM |
|
|
| UV12GPM-H/HT/HTM(수평형) |
| DIMENSION LxWxD (mm) |
900X170X89
(UV12GPM-H)
900X190X160
(UV12GPM-HTM) |
| ELECTRICAL |
110/220V |
| VOLTS |
50/60Hz |
| FLOW RATE |
12GPM |
| IN/OUT PORT |
3/4" |
| UV LAMP (PC) |
1 |
| QUARTZ SLEEVE (PC) |
1 |
| LAMP FAILURE DEVICE |
YES |
| AMBIENT TEMPERATURE |
2~40℃
(36~40℉) |
| LAMP WATTS |
39W |
| CHAMBER |
SS304 |
| ACCUMULATED TIMER |
UV12GPM-HT
UV12GPM-HTM |
| UV LIGHT MONITOR |
UV12GPM-HTM |
|
|
| |
 |
UV6GPM-V |
 |
UV12GPM-V |
|
| UV6GPM-V,UV12GPM-V(수직형) |
|
UV6GPM-V |
UV12GPM-V |
DIMENSION LxWxD (mm) |
650X80X140 |
900X89X170 |
ELECTRICAL VOLTS |
110/220V 50/60Hz |
110/220V 50/60Hz |
FLOW RATE |
6GPM |
12GPM |
IN/OUT PORT |
1/2" |
3/4" |
UV LAMP (PC) |
1 |
1 |
QUARTZ SLEEVE (PC) |
1 |
1 |
LAMP FAILURE DEVICE |
YES |
YES |
AMBIENT TEMPERATURE |
2~40℃ (36~104℉) |
2~40℃ (36~104℉) |
LAMP WATTS |
20W |
39W |
CHAMBER |
SS304 |
SS304 |
ACCUMULATED TIMER |
YES |
YES |
|
|
| |
| |
UV24GPM-H |
UV24GPM-HT |
UV24GPM-HTM |
|
|
| UV24GPM-H/HT/HTM(수평형) |
| "DIMENSION LxWxD (mm)" |
900X190X160 (UV24GPM-H)
900X240X160 (UV24GPM-HTM) |
| "ELECTRICAL VOLTS" |
110/220V
50/60Hz |
| FLOW RATE |
24GPM |
| IN/OUT PORT |
1" |
| UV LAMP (PC) |
2 |
| QUARTZ SLEEVE (PC) |
2 |
| LAMP FAILURE DEVICE |
YES |
| AMBIENT TEMPERATURE |
2~40℃ |
| TEMPERATURE |
(36~104℉) |
| LAMP WATTS |
39WX2 |
| CHAMBER |
SS304 |
| ACCUMULATED TIMER |
UV24GPM-HT, HTM |
| UV LIGHT MONITO |
UV24GPM-HTM |
|
|
| |
| |
 |
UV36GPM-HT |
|
| UV36GPM-HT/HTM(수평형) |
| DIMENSION LxWxD (mm) |
980X230X280 |
| ELECTRICAL VOLTS |
110/220V 50/60Hz |
| FLOW RATE |
36GPM |
| IN/OUT PORT |
1 1/2" |
| UV LAMP (PC) |
3 |
| QUARTZ SLEEVE (PC) |
3 |
| LAMP FAILURE DEVICE |
YES |
| AMBIENT TEMPERATURE |
2~40℃ (36~104℉) |
| LAMP WATTS |
39WX3 |
| CHAMBER |
SS304 |
| ACCUMULATED TIMER |
YES |
| UV LIGHT MONITOR |
UV36GPM-HTM |
|
|
| |
 |
UV48GPM-HT |
|
| UV48GPM-HT/HTM(수평형) |
| DIMENSION LxWxD (mm) |
980X230X280 |
| ELECTRICAL VOLTS |
110/220V 50/60Hz |
| FLOW RATE |
48GPM |
| IN/OUT PORT |
1 1/2" |
| UV LAMP (PC) |
4 |
| QUARTZ SLEEVE (PC) |
4 |
| LAMP FAILURE DEVICE |
YES |
| AMBIENT TEMPERATURE |
2~40℃ (36~104℉) |
| LAMP WATTS |
39WX4 |
| CHAMBER |
SS304/SS316 |
| ACCUMULATED TIMER |
YES |
| UV LIGHT MONITOR |
UV48GPM-HTM |
|
|
| |
 |
UV60GPM-HTM |
|
| UV60GPM-HTM(수평형) |
| DIMENSION LxWxD (mm) |
980X230X280 |
| ELECTRICAL VOLTS |
110/220V 50/60Hz |
| FLOW RATE |
48GPM |
| IN/OUT PORT |
1 1/2" |
| UV LAMP (PC) |
4 |
| QUARTZ SLEEVE (PC) |
4 |
| LAMP FAILURE DEVICE |
YES |
| AMBIENT TEMPERATURE |
2~40℃ (36~104℉) |
| LAMP WATTS |
39WX4 |
| CHAMBER |
SS304/SS316 |
| ACCUMULATED TIMER |
YES |
| UV LIGHT MONITOR |
UV48GPM-HTM |
|
|
| |
 |
UV72GPM-HTM |
|
| UV72GPM-HTM(수평형) |
| DIMENSION LxWxD (mm) |
08X280X280 |
| ELECTRICAL VOLTS |
110/220V 50/60Hz |
| FLOW RATE |
72GPM |
| IN/OUT PORT |
2" or FLANGE |
| UV LAMP (PC) |
6 |
| QUARTZ SLEEVE (PC) |
6 |
| LAMP FAILURE DEVICE |
YES |
| AMBIENT TEMPERATURE |
2~40℃ (36~104℉) |
| LAMP WATTS |
39WX6 |
| CHAMBER |
SS316 |
| ACCUMULATED TIMER |
YES |
| UV LIGHT MONITOR |
YES |
|
|
| |
 |
UV120GPM-HTM |
|
| UV120GPM-HTM(수평형) |
| DIMENSION LxWxD (mm) |
1500X1100X560 |
| ELECTRICAL VOLTS |
110/220V 50/60Hz |
| FLOW RATE |
120GPM |
| IN/OUT PORT |
3" or FLANGE |
| UV LAMP (PC) |
10 |
| QUARTZ SLEEVE (PC) |
10 |
| LAMP FAILURE DEVICE |
YES |
| AMBIENT TEMPERATURE |
2~40℃ (36~104℉) |
| LAMP WATTS |
39WX10 |
| CHAMBER |
SS316/SS316L |
| ACCUMULATED TIMER |
YES |
| UV LIGHT MONITOR |
YES |
| SEPARATE POWER BOX |
YES |
|
|
| |
|
| UV시스템 악세사리 |
UV BALLAST |
UV BALLAST |
UV LIGHT MONITOR |
- WATTS: 10-14W
- APPLICATION: UV-S, UV1GPM |
- WATTS: 20-40W
- APPLICATION: UV6GPM, UV12GPM |
STANDARD SPECIFICATION
- Wave-length of light range: 200~1000nm
- Intensity of range: 38(100%)㎼-sec/㎠
- Material: SS316 & Quartz glass
- Normal: 23-38㎼-sec/㎠ (60-100%)
- Service: 16-23㎼-sec/㎠ (40-60%)
- Unsafe: 0-16㎼-sec/㎠ (0-40%)
- Power: 120V or 230V (50-60Hz) |
|
|
| |
| |
|
